Carraro Axle 146866

Back to search page

Call for pricing

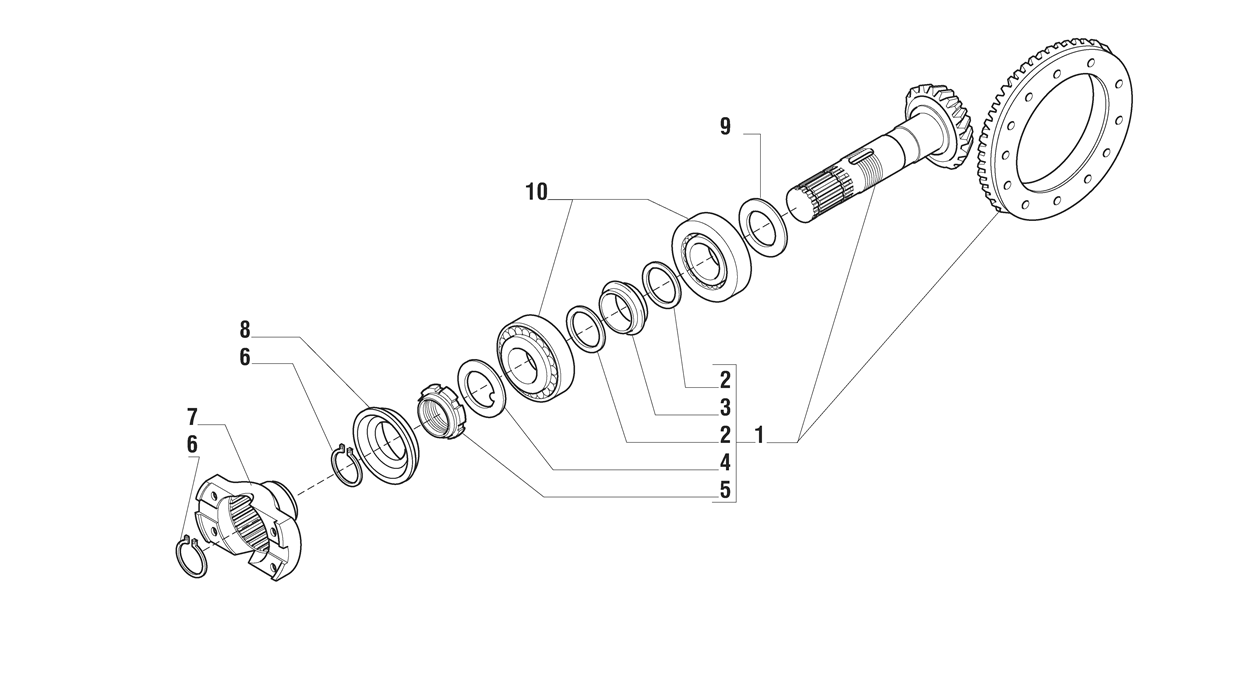

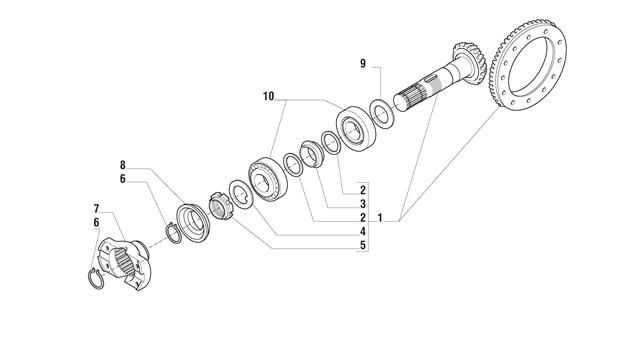

Document Revision 0, Page 5

Pos	Part	Qty	Description	Kit
1	TR02398	1	Bevelgear / pinion set Z = 10/31
2	TR03735	2	washer 51x35x3	66314
3	TR03729	1	Spacer	66314
4	TR03079	1	washer 54.5x46.9x3	66314
5	TR03090	1	Shim M44x1.5	66314
6	TR00520	2	washer
7	TR06345	1	Suction flange
8	TR05094	1	Sealring 42x62x8
9	TR04622	0	Shim 2.5m m
9	TR04623	0	Shim 2.6m m
9	TR04624	0	Shim 2.7m m
9	TR04625	0	Shim 2.8m m
9	TR04626	0	Shim M20x1.5
9	TR04627	0	washer
9	TR04628	0	Shim 3.1m m
9	TR04629	0	Shim 3.2m m
9	TR04630	0	Shim 3.4m m
9	TR04631	0	Shim 3.50mm
10	TR00772	2	Tapered bearing
