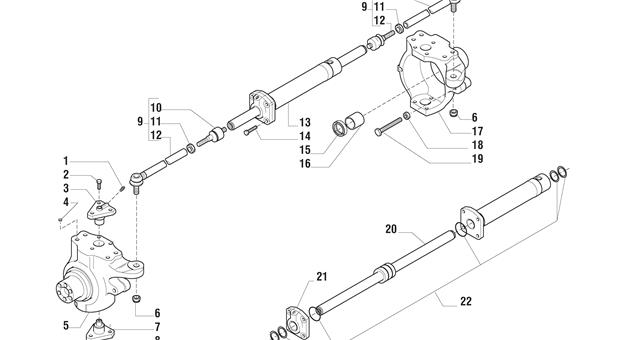

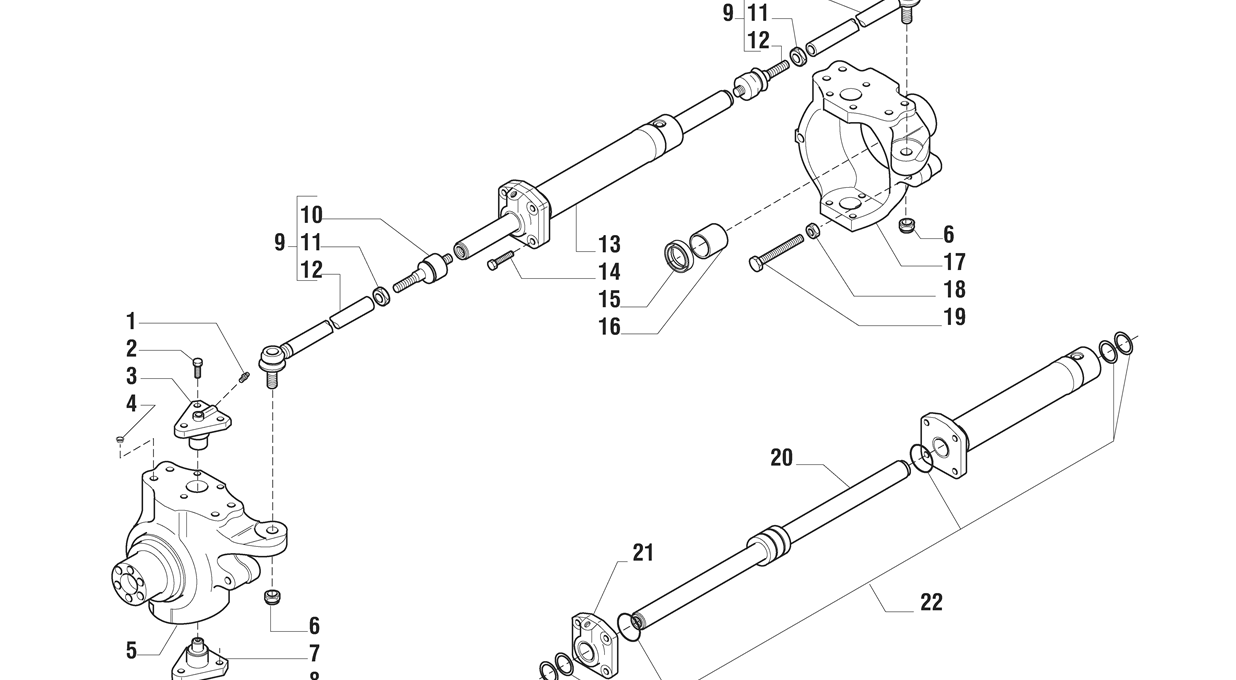

Carraro Axle 146866
Back to search page
3
4
5
6
7
8
9
10
Call for pricing
Document Revision
0,
Page
4
Pos
Part
Qty
Description
Kit
Note
1
TR00431
2
Grease Nipple M 6x1
2
TR03878
12
Screw M14x35
3
TR04797
2
Lower king pin
4
TR01062
8
Tappo ø .14,5
5
TR07885
1
swivelhousing RH
6
TR00345
2
Nut M20x1,5
7
TR04074
2
Lower king pin
8
TR00432
2
Grease nipple M6x1-45°
9
TR04729
2
Steering arm assembly
10
TR09403
2
Steering joint RH
132751
11
TR02944
2
Sphericaljoint
132751
12
TR09431
2
Tirant
132751
13
TR04722
1
Steering cylinder
14
TR04016
4
Screw M12x45
15
TR07698
2
Sealring 45x65x12
16
TR03668
2
Bushing
17
TR07886
1
Swivel housing RH
18
TR00320
2
O ring
19
TR03599
2
Screw M16x100
20
TR02066
1
Tige
132735
21
TR02065
1
Steering cylinder
132735
22
TR02064
1
Sealkit
132735
