Carraro Axle 143427

Back to search page

Call for pricing

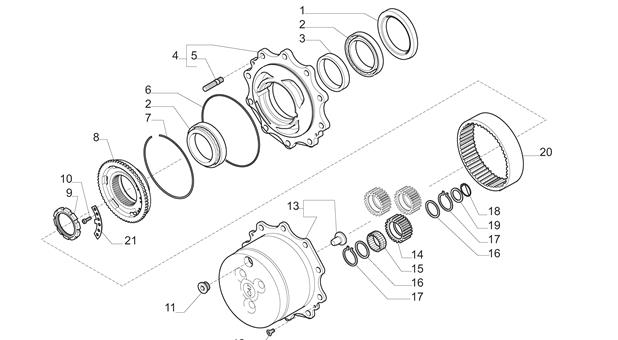

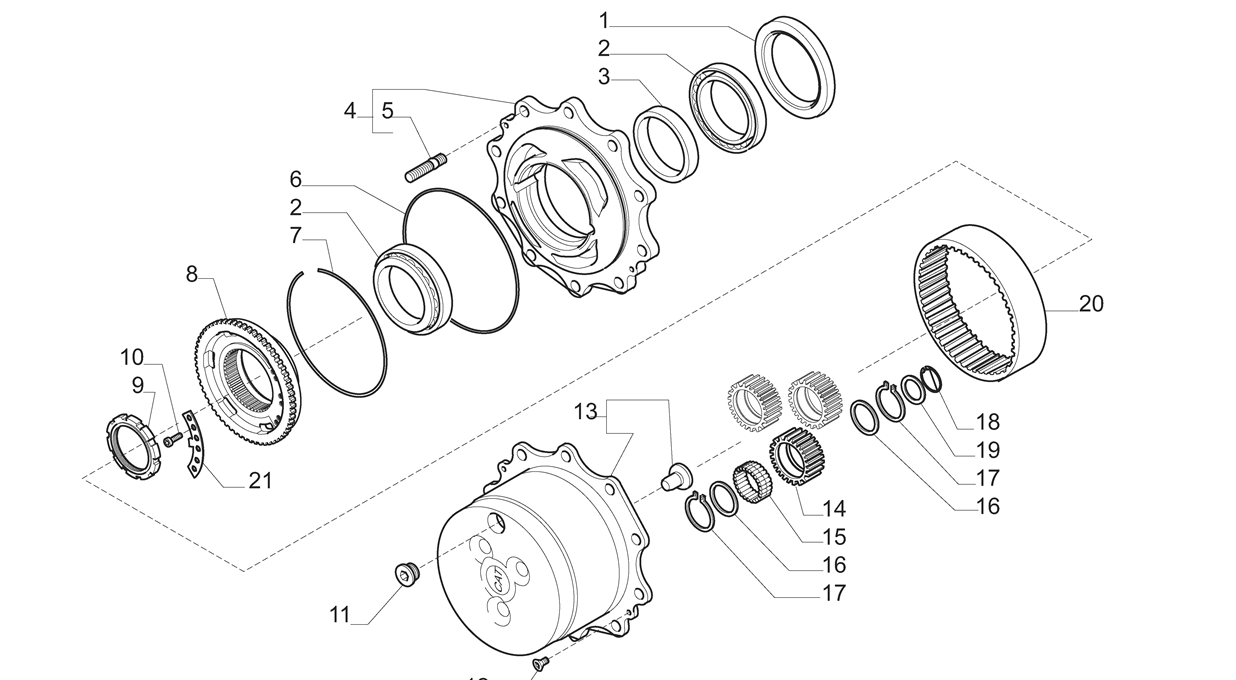

Document Revision 1, Page 8

Pos	Part	Qty	Description	Note
1	TR01810	2	Sealring	C M 8871
2	TR03221	4	Tapered bearing	C M 9160
3	TR08800	2	Thrustwasher	C M 8864
4	TR02785	2	Wheelhub kit	C M 8781
5	TR08663	20	Stud	C M 8781
6	TR00982	2	O ring
7	TR06963	2	Spacer
8	TR08802	2	wheel carrier kit	C M 8864
9	TR08797	2	Ring nutM 90x2	C M 8864
10	TR08804	6	Screw M10x12	C M 8864
11	TR03658	2	Tappo M 30x2
12	TR00014	4	Screw M8x20
13	TR02744	2	wheelhub kit	C M 9172
14	TR08078	6	Planetary Gear Z =31
15	TR06953	6	Rollers bearing
16	TR08054	12	washer
17	TR00591	12	Snap ring ø 72
18	TR00529	6	Snap ring ø 50
19	TR07948	6	washer
20	TR06885	2	Ring gear
21	TR08799	2	Lock washer	C M 8864
