Carraro Axle 140485

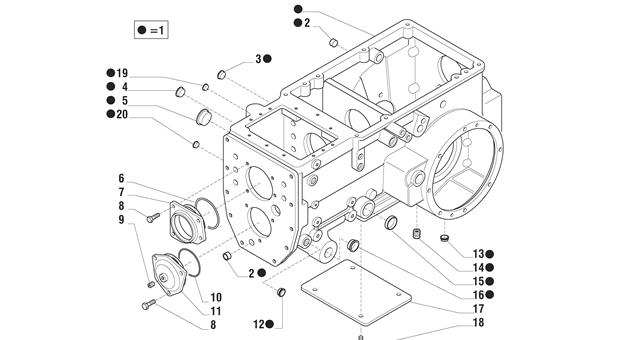

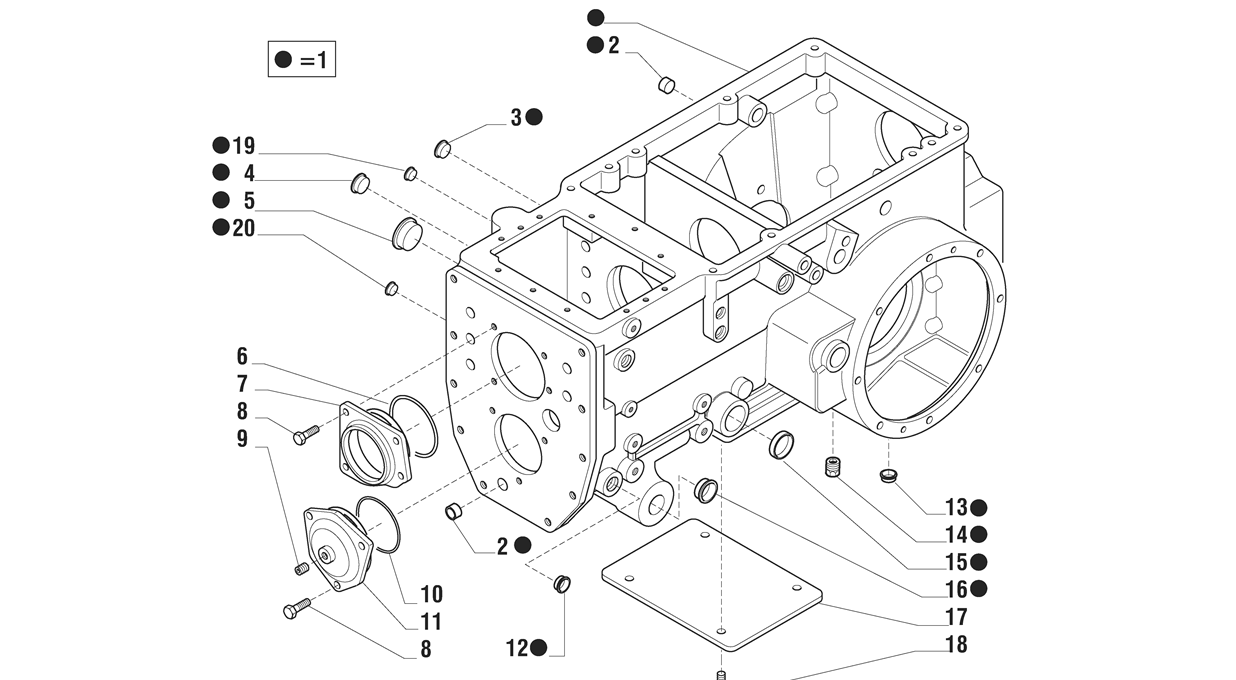

Carraro Axle Drawing for 140485, page 6
Back to search page
Call for pricing

1, 6

Pos Part Qty Description Kit Note
1 1 XXX CM 7832
1 TR02546 1 wheelhub assembly
2 TR05780 2 Plug ø 20.35x6 -66
3 TR02953 3 Plug ø 15.5 -66
4 TR01067 1 Plug ø 20.5 -66
5 TR01075 1 Plug ø 39 -66
6 TR00966 1 Ring
7 TR06340 1 Cover
8 TR05269 7 Screw M8x25
9 TR00245 1 Plug 12x1,5
10 TR00870 1 Ring
11 TR06352 1 Cover
12 TR00244 1 wheelshaft cover -66 CM 8278
12 TR01066 1 wheelshaft cover -66
13 TR01062 12 Tappo ø .14,5 -66
14 TR02989 1 Plug M 22x1.5 -66
15 TR03466 1 Plug ø 38x10 -66
16 TR01071 4 Plug ø 26 -66
17 TR03314 1 U nteredeckel
18 TR03961 4 Screw M16x100
19 TR01072 3 Plug ø 7 -66
20 TR01061 10 Plug ø 11 -66
