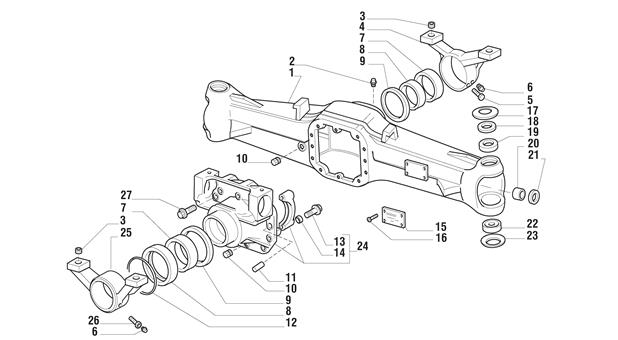

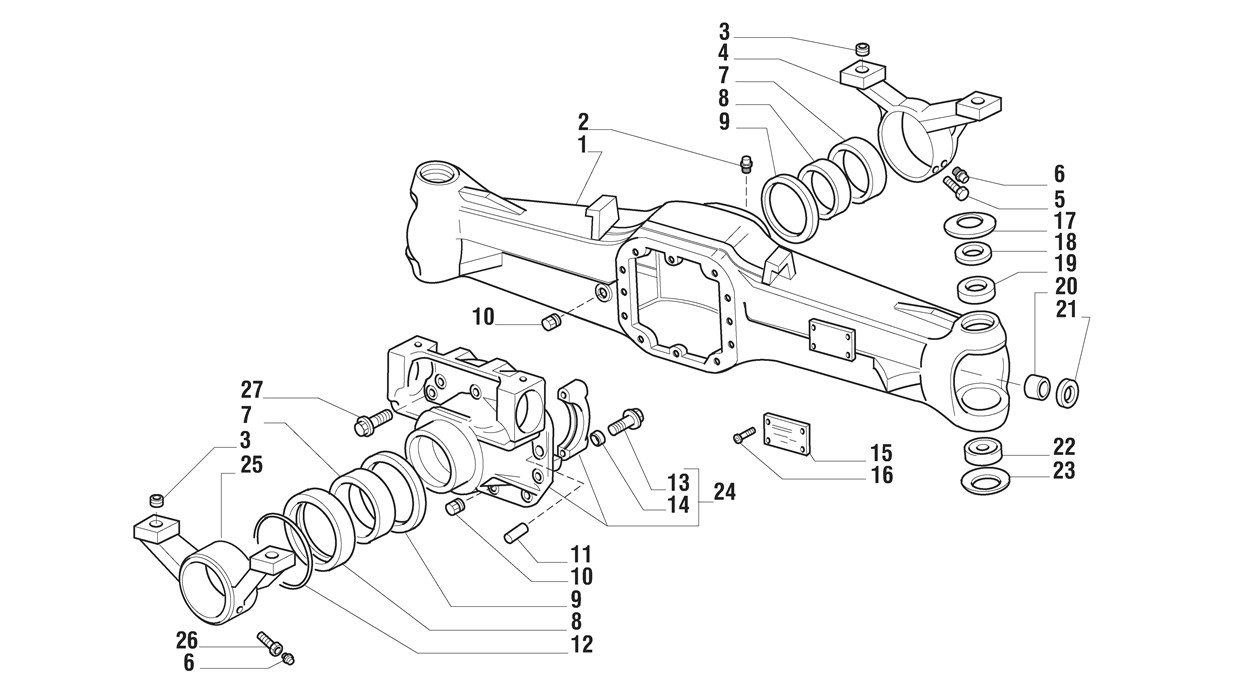

Carraro Axle 126554
Back to search page
3
4
5
6
7
8
9
10
11
12
Call for pricing
Document Revision
0,
Page
4
Pos
Part
Qty
Description
Kit
Note
1
TR04115
1
Axle housing
2
TR03025
1
Plug 10x1
3
TR03128
4
Differential support
4
TR03866
1
Front support
5
TR03837
1
Screw
6
TR00431
2
Grease Nipple M 6x1
7
TR03016
2
Thrustwasher
8
TR03015
2
washer
9
TR03109
2
washer
10
TR03981
2
Plug M281.5
11
TR02975
2
Pin ø 15x35
12
TR00831
1
O ring
13
TR03770
4
Screw M14x2x75
14
TR02946
4
Differential support
15
TR03508
1
16
TR00426
4
Rivet ø 3.2
17
TR03732
2
RH Belleville washer
18
TR03596
2
Thrustwasher
19
TR04422
2
Spacerwasher
20
TR03237
2
swivelhousing RH
21
TR03242
2
Sealring
22
TR00803
2
Sphericaljoint
23
TR04035
2
Spring washer
24
TR03982
1
Differential support
25
TR03867
1
Rearsupport
26
TR03619
1
Screw
27
TR03733
10
Screw M12x33
