Carraro Axle 141155
Back to search page
3
4
5
6
7
8
Call for pricing

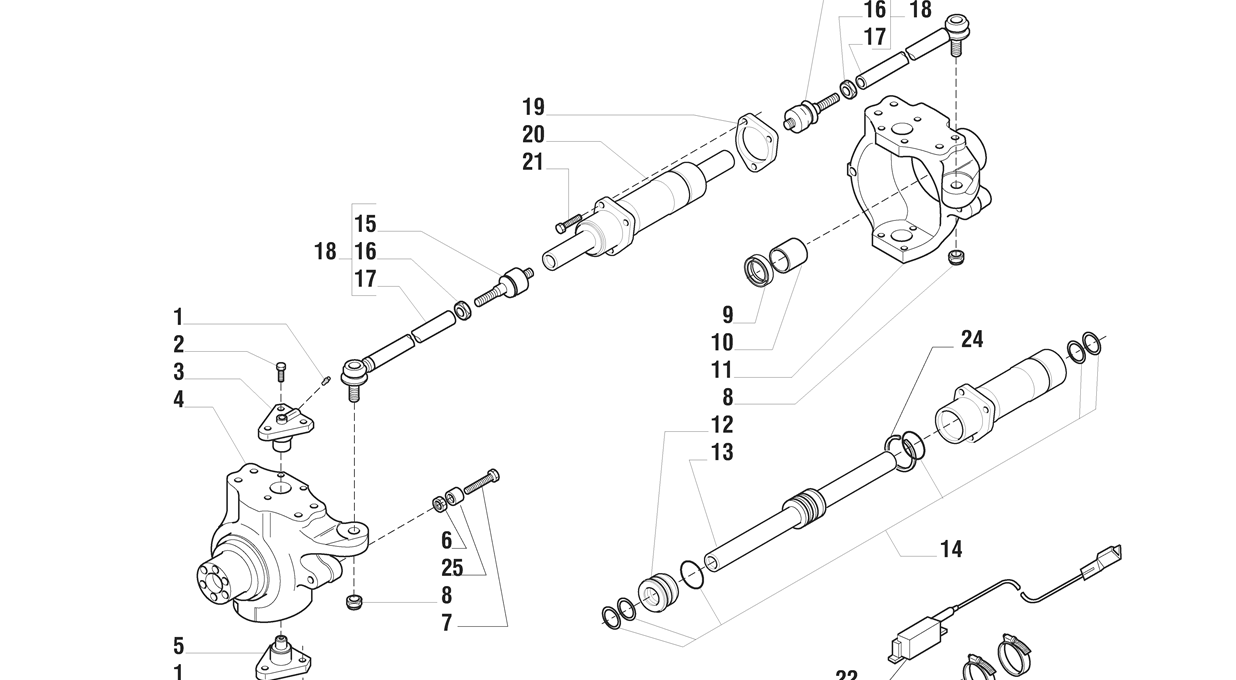

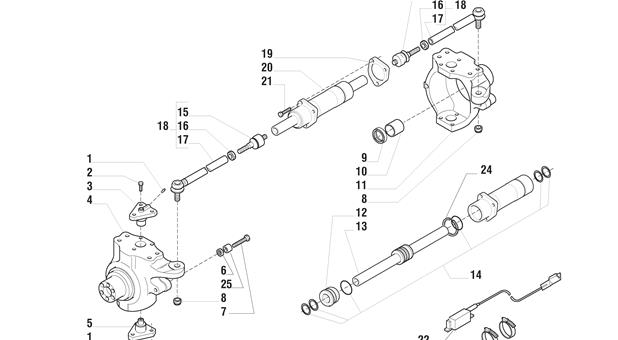

Document Revision
1,
Page
4
Pos
Part
Qty
Description
Kit
Note
1
TR00431
4
Grease Nipple M 6x1
2
TR03878
12
Screw M14x35
3
TR04073
2
Upper king pin
4
TR07889
1
swivelhousing RH
5
TR04074
2
Lower king pin
6
TR00320
4
O ring
7
TR05961
4
Screw
8
TR00345
2
Nut M20x1,5
9
TR07698
1
Sealring 45x65x12
10
TR03668
2
Bushing
11
TR07890
1
Swivel housing RH
12
TR02000
1
Steering cylinder
13
TR01953
1
Tige
14
TR02067
1
Tapered ring
15
TR01929
2
Tie rod joint
16
TR02944
2
Sphericaljoint
17
TR09423
2
Tirant
18
TR04494
2
Tige de direction
19
TR05681
1
Suction flange
20
TR05556
1
Steering cylinder
21
TR00113
3
Screw M12x55
22
TR05517
1
switch
23
TR00902
2
Clamp
24
TR01989
1
Magnetic ring
25
TR03785
4
Bushing
