Carraro Axle 150034

0, 3
Back to search page

Select Page Number:

Call for pricing

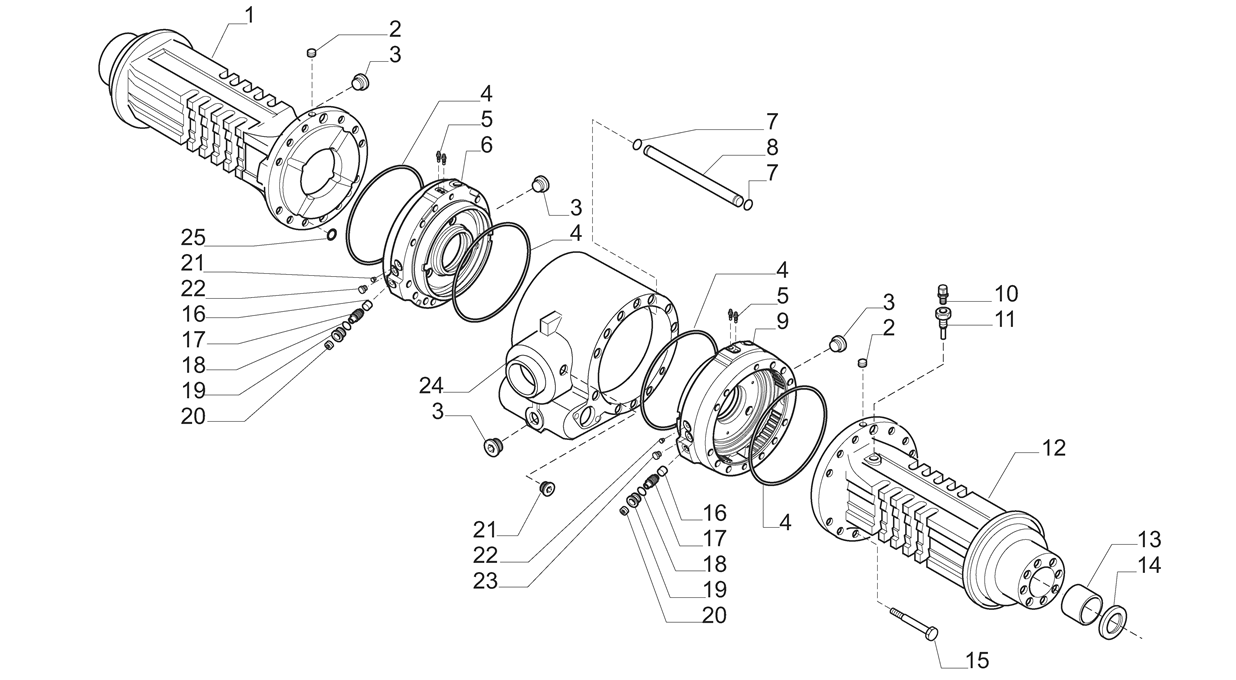

Carraro Axle Drawing for 150034, page 3
Pos Part Qty Description Kit Note
1 TR09235 1 Tr?ertrom pete (link)
2 TR00241 2 Plug M 10x1
3 TR03658 4 Tappo M 30x2
4 TR00971 4 Ring
5 TR03139 4 Reniflard M 10x1
6 TR08102 1 RH brake cylinder
7 TR00950 2 Ring
8 TR06389 1 Pipe
9 TR08101 1 RH brake cylinder
10 TR03025 1 Plug 10x1
11 TR03422 1 Verl?gerung
12 TR09236 1 Tr?ertrom pete (rechte)
13 TR04538 2 Thrustwasher
14 TR00641 2 Sealring
15 TR00106 22 Screw M14x140
16 TR06327 6 Thrustwasher
17 TR05422 6 Screw M16x1.5
18 TR00957 6 Screw M12x45
19 TR06311 6 Special Screw
20 TR00248 6 Tappo M 16x1,5
21 TR00255 1 Plug
22 TR01082 2 Plug
23 TR00250 2 Tappo
24 TR06199 1 Central body housing
25 TR00931 8 Ring
