Carraro Axle 149978

0, 3
Back to search page

Select Page Number:

Call for pricing

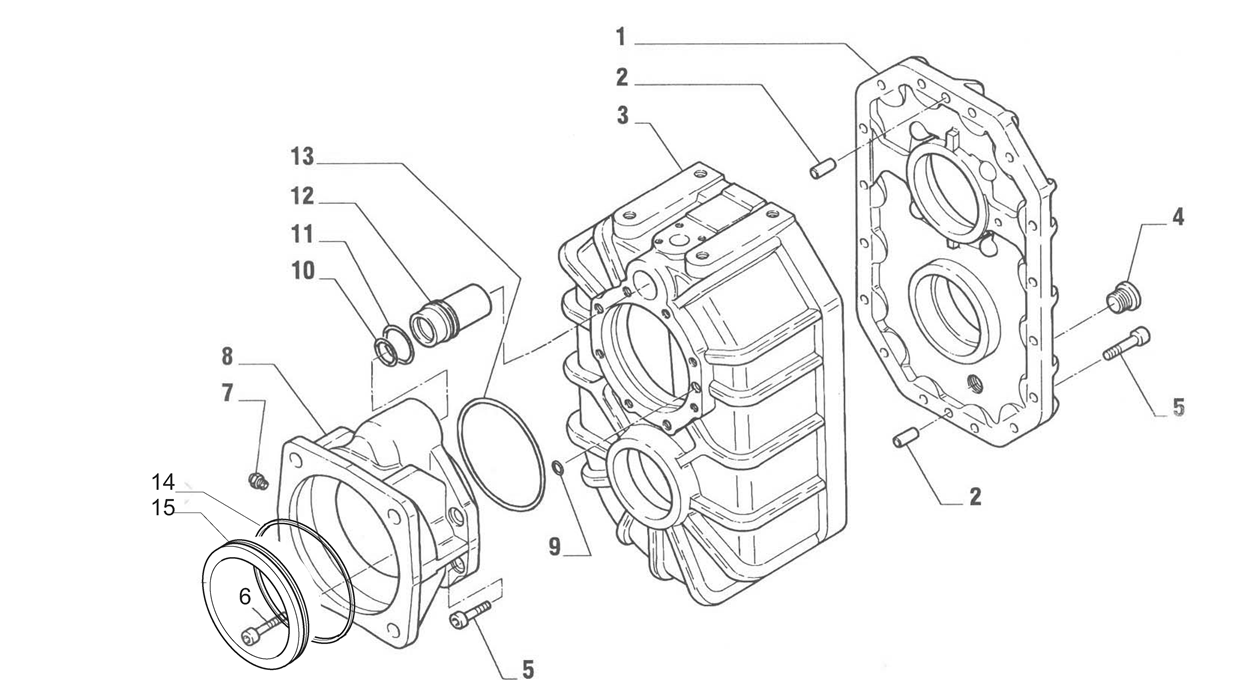

Carraro Axle Drawing for 149978, page 3
Pos Part Qty Description Kit Note
1 TR04517 1 Cover
2 TR02947 2 Pin ø 10x35
3 TR04502 1 transmission housing
4 TR04528 2 Plug M 22x1.5
5 TR00166 4 Screw M10x30
6 TR00208 4 Screw M10x90
7 TR04834 1 Breather M10x1.5
8 TR04507 1 Suction flange
9 TR00881 1 O ring
10 TR00875 1 Ring
11 TR00856 1 Ring
12 TR05389 1 Thrustwasher
13 TR00964 1 Ring
14 TR01002 1 Ring
15 TR09222 1 Adapter
