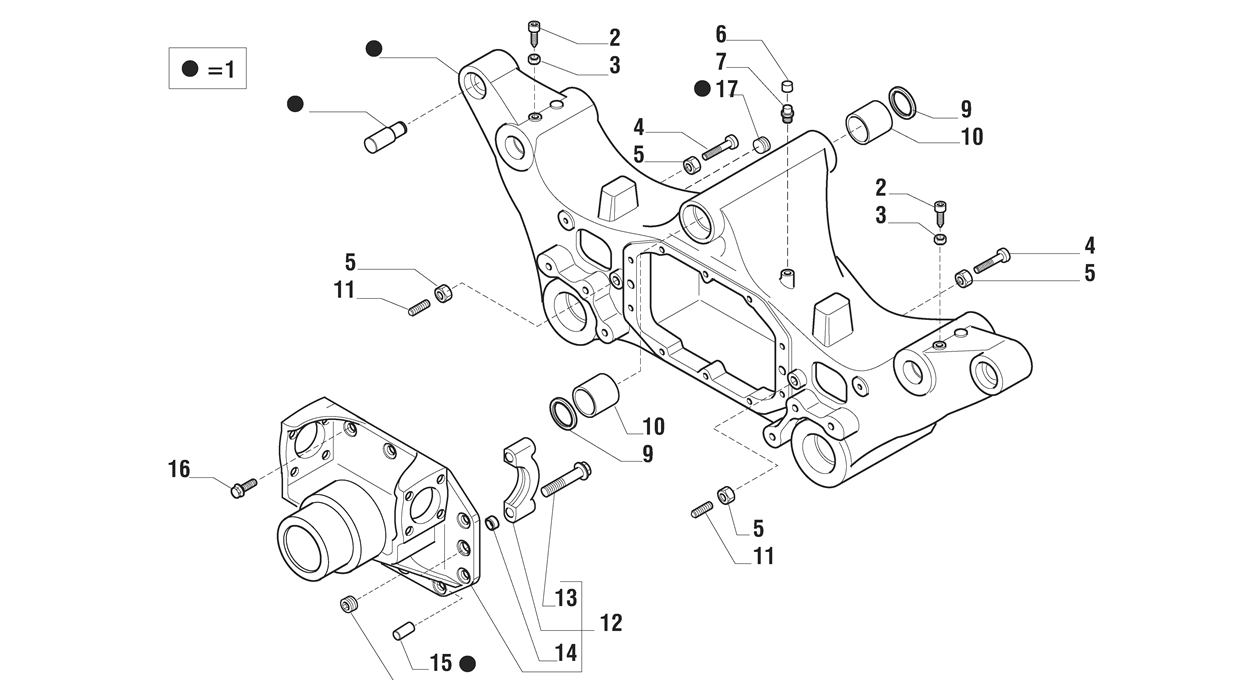

Carraro Axle Drawing for 149696, page 3
Pos Part Qty Description Kit Note
1 TR02663 1 Axle housing kit
2 TR06319 2 Screw
3 TR00317 2 Nut M12x1.5
4 TR00228 2 Grub screw M12x70
5 TR00315 4 Screw M.12x60
6 TR04320 1 Protection plug
7 TR03025 1 Plug 10x1
8 TR03981 1 Plug M281.5
9 TR03337 2 Sealring
10 TR03827 2 Thrustwasher
11 TR00227 2 Screw
12 TR05401 1 Differential support
13 TR03770 4 Screw M14x2x75
14 TR02946 4 Differential support
15 TR02975 2 Pin ø 15x35 66909
16 TR03733 10 Screw M12x33
17 TR02989 1 Plug M 22x1.5 66909
