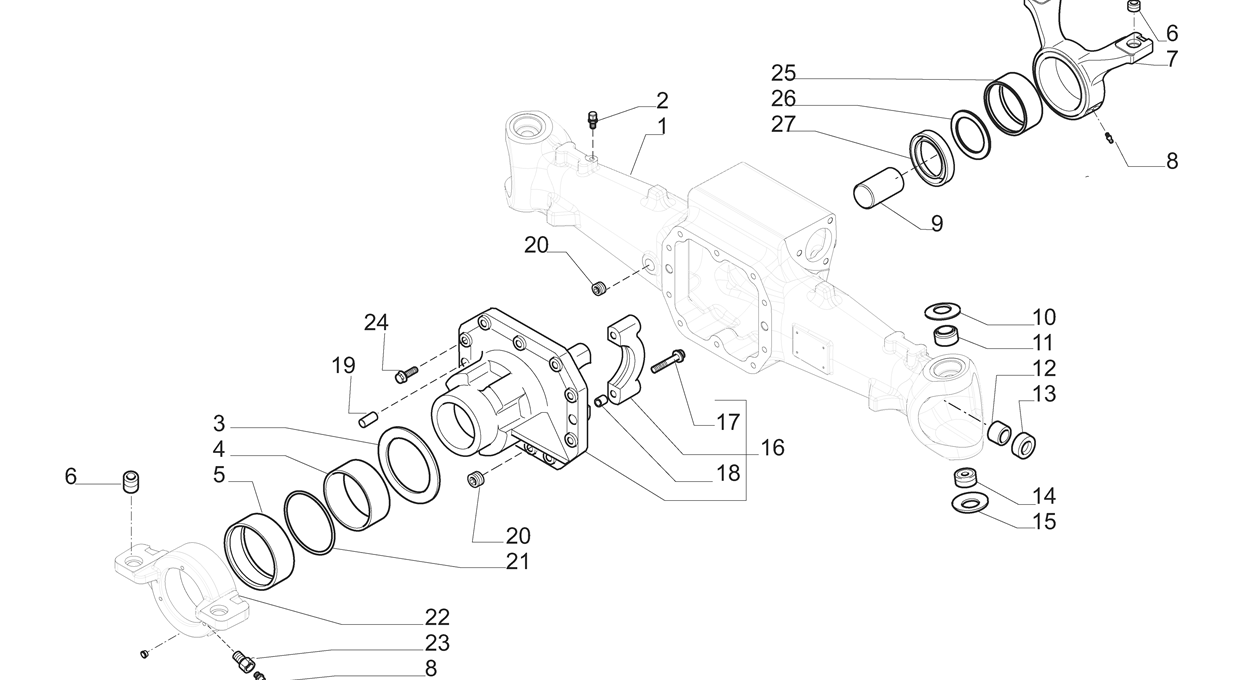

Carraro Axle Drawing for 148455, page 3
Pos Part Qty Description Kit Note
1 TR08850 1 Axle housing
2 TR03025 1 Plug 10x1
3 TR03109 1 washer
4 TR03015 1 washer
5 TR03016 1 Thrustwasher
6 TR03128 4 Differential support
7 TR09552 1 Front support
8 TR00431 2 Grease Nipple M 6x1
9 TR09537 1 Pin
10 TR03732 2 RH Belleville washer
11 TR07743 2 Spacerwasher
12 TR03237 2 swivelhousing RH
13 TR03808 2 Sealring 20x40x14
14 TR00803 2 Sphericaljoint
15 TR04035 2 Spring washer
16 TR03983 1 Differential support
17 TR03770 4 Screw M14x2x75
18 TR02946 4 Differential support
19 TR02975 2 Pin ø 15x35
20 TR03981 2 Plug M281.5
21 TR00831 1 O ring
22 TR08200 1 Rearsupport
23 TR03619 1 Screw
24 TR03733 10 Screw M12x33
25 TR04168 1 Bush 52.72x57.16x42
26 TR04169 1 washer 80-53-5
27 TR04455 1 Sealring 42x62x8
