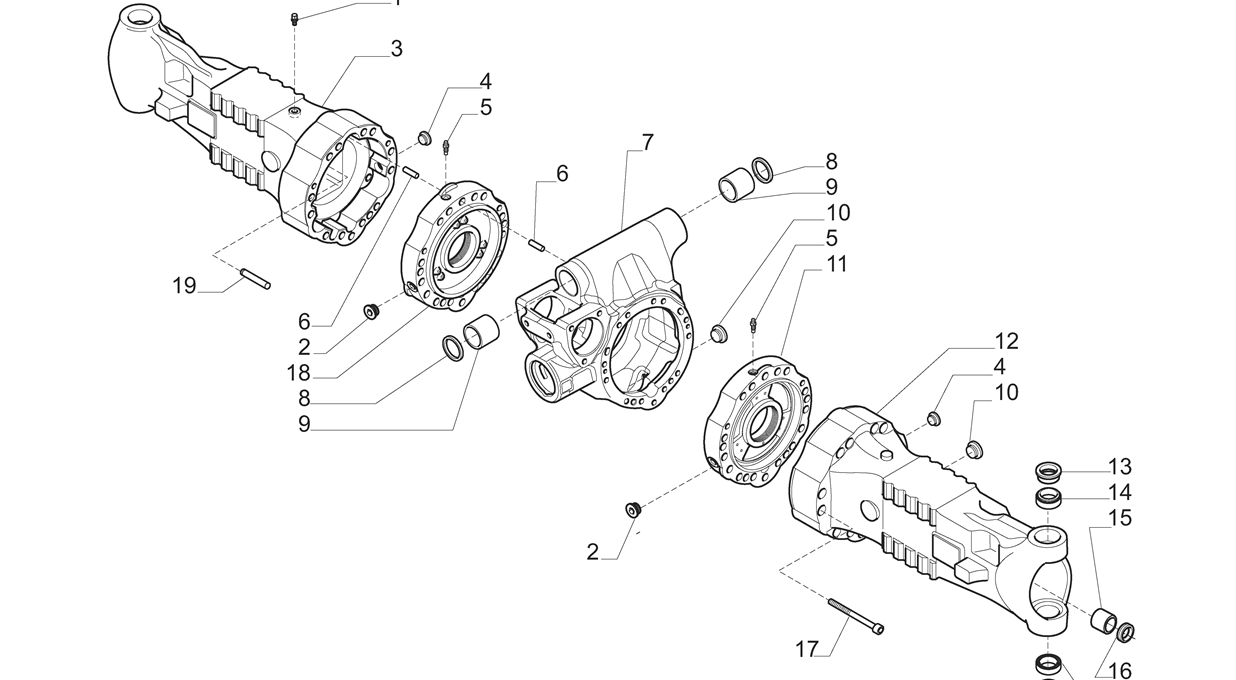

Carraro Axle Drawing for 146141, page 3
Pos Part Qty Description Kit Note
1 TR03025 1 Plug 10x1
2 TR00250 2 Tappo
3 TR08567 1 LH leg housing
4 TR08044 2 Plug M24x1.5
5 TR03139 2 Reniflard M 10x1
6 TR03635 2 Pin ø 14x40
7 TR08421 1 Central body
8 TR01106 2 Sealring
9 TR07453 2 Bushing 55x68x6.5
10 TR03658 2 Tappo M 30x2
11 TR08565 1 RH brake cylinder
12 TR08566 1 RH leg housing
13 TR06958 4 Spring
14 TR06634 4 washer
15 TR03155 2 Bush 40x44x35
16 TR03809 2 Sealring
17 TR00286 26 Screw M16x160
18 TR08564 1 RH brake cylinder
19 TR07105 6 Shaft
