Carraro Axle 133580

1, 3
Back to search page

Select Page Number:

Call for pricing

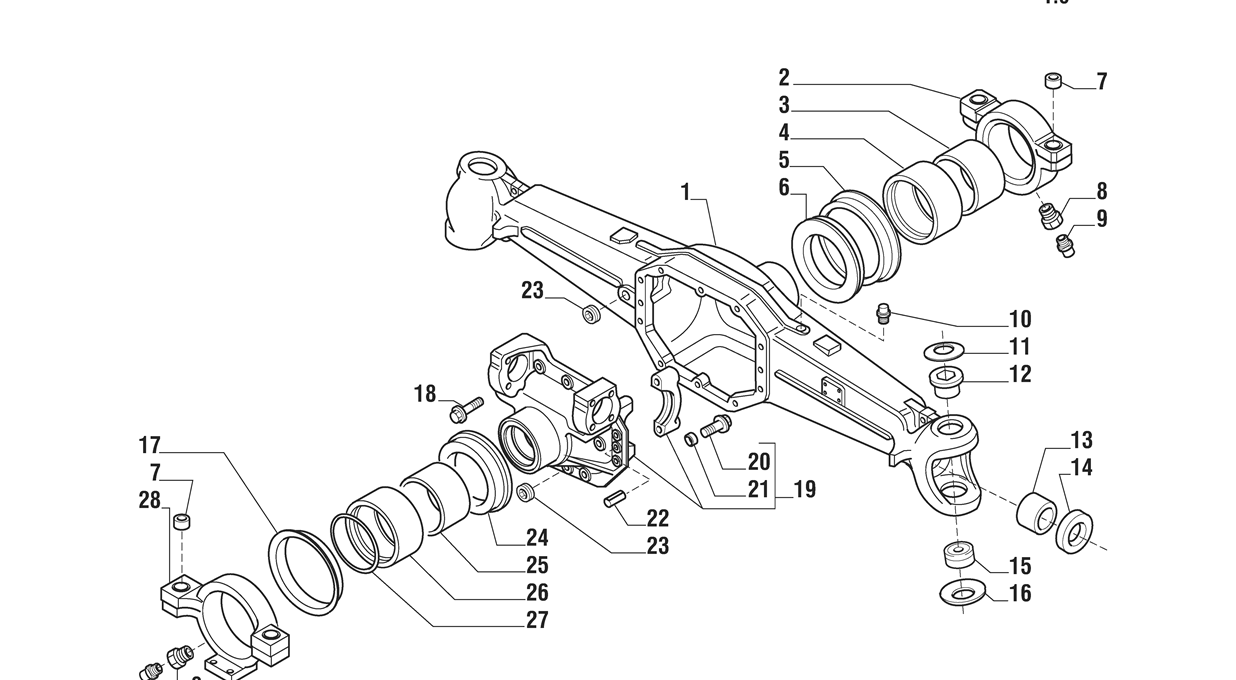

Carraro Axle Drawing for 133580, page 3
Pos Part Qty Description Kit Note
1 TR08024 1 Axle housing was 133573
2 TR04877 1 Front support
3 TR03015 1 washer
4 TR03016 1 Thrustwasher
5 TR00878 1 V-ring
6 TR03919 1 washer
7 TR03128 4 Differential support
8 TR03838 2 Screw
9 TR00431 2 Grease Nipple M 6x1
10 TR03025 1 Plug 10x1
11 TR04039 2 Rondelle "Belleville"
12 TR08699 2 swivelhousing RH From s/n 6018 - was 133148
13 TR03155 2 Bush 40x44x35
14 TR08117 2 Sealring
15 TR03554 2 Sphericaljoint
16 TR04036 2 Spring washer
17 TR01011 1 V-ring
18 TR03733 10 Screw M12x33
19 TR05621 1 Differential support
20 TR03770 4 Screw M14x2x75
21 TR02946 4 Differential support
22 TR02975 2 Pin ø 15x35
23 TR03981 2 Plug M281.5
24 TR04880 1 washer
25 TR03595 1 Thrustwasher
26 TR03541 1 washer
27 TR00929 1 Ring
28 TR04878 1 Rearsupport
