Carraro Axle 068224

0, 2
Back to search page

Select Page Number:

Call for pricing

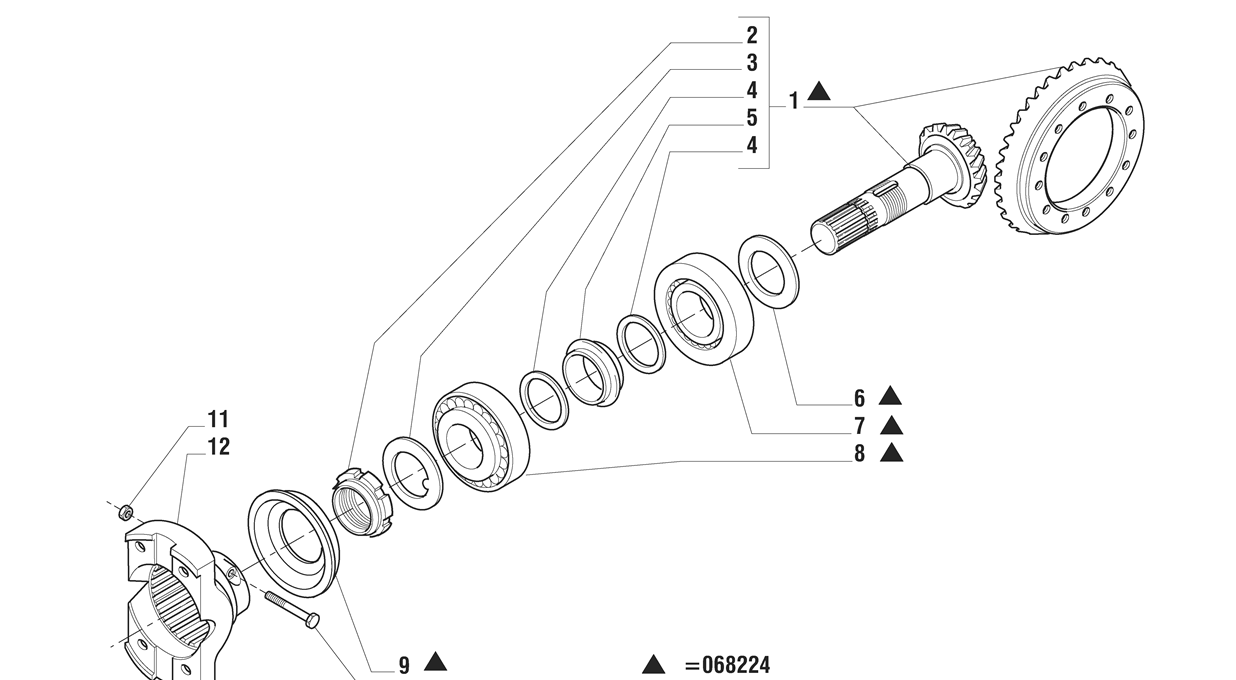

Carraro Axle Drawing for 068224, page 2
Pos Part Qty Description Kit Note
1 TR02671 1 Bevelgear / pinion set Z = 11/33 68224
2 TR03090 1 Shim M44x1.5 66918
3 TR03079 1 washer 54.5x46.9x3 66918
4 TR03735 2 washer 51x35x3 66918
5 TR03805 1 Spacer 66918
6 TR05056 0 Shim 2.5m m 68224
6 TR05057 0 Shim 2.6m m 68224
6 TR05058 0 Shim 2.7m m 68224
6 TR05059 0 Shim 2.8m m 68224
6 TR05060 0 Shim 2.9m m 68224
6 TR05061 0 Shim 3.0m m 68224
6 TR05062 0 Shim 3.20mm 68224
6 TR05063 0 Shim 3.30mm 68224
6 TR05064 0 Shim 3.3m m 68224
6 TR05065 0 Shim 3.4m m 68224
7 TR00782 1 Tapered bearing 68224
8 TR00772 1 Tapered bearing 68224
9 TR05094 1 Sealring 42x62x8 68224
10 TR00117 2 Screw M10x60
11 TR00340 2 Nut M19x1.5
12 TR04715 1 Suction flange
