Telehoist Skiploader CH18prS Pins and Bearings

Back to search page

Choose a drawing

Choose your parts and call us with your order on 01452 733106

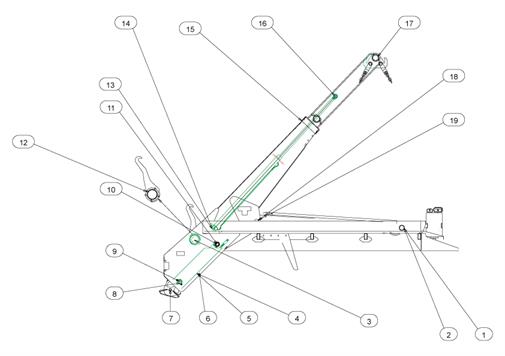

Item Part Number Description Qty/
Machine
Qty/
Pin

1 SP-PA0001 Main Ram Base Pin 2
2 SP-B0001 Bearing Main Ram Base 4 2
3 SP-B0008 Bearing Boom Arm Load Shaft 2
4 SP-B0059 Wear Pad 4
5 SP-B0058 Wear Pad Bottom 4
6 SP-B0057 Wear Pad Top 4
7 SP-P0062 Wheel Pin Assy 2
8 SP-P0064 Jack Ram Eye Pin Assy 2
9 SP-B0004 Bearing Jack Ram Eye 4 2
10 SP-P0063 Jack Ram Base Pin Assy 2
11 SP-B0004 Bearing Jack Ram Base 4 2
12 SP-B0009 Bearing Tip Hook 2
13 SP-B0010 Telescopic Ram Bearing 4 2
14 SP-P0011 Telescopic Ram Base Pin 2
15 SP-B0011 Wear Pad 8
16 SP-P0012 Telescopic Ram Eye Pin 2 1
17 SP-B0006 Bearing Chain Saddle 2
18 SP-PA0006 Main Ram Eye Pin Assy 2
19 SP-B0002 Bearing Main Ram Eye Tee 4 2
