Carraro Axle 142296
Back to search page
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
Call for pricing

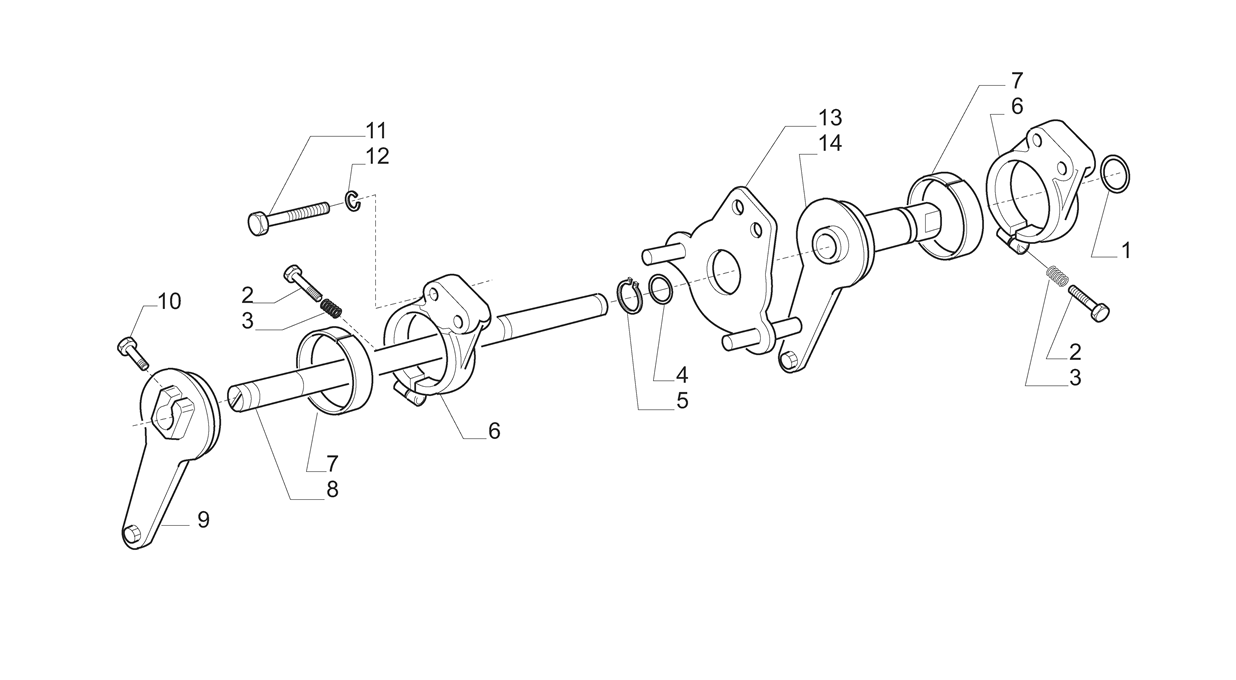

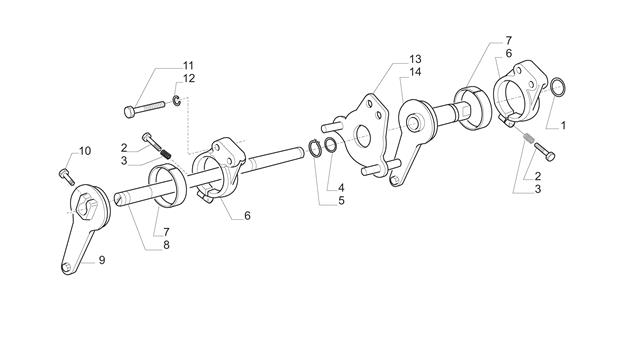

Document Revision
0,
Page
34
Pos
Part
Qty
Description
Kit
Note
1
TR09292
1
Ring
48597
TR01652
0
Stress drive shaft(pre-ass.)
2
TR00025
2
Screw M6x10
3
TR01685
2
Spring
4
TR01679
1
Ring
48597
TR01651
0
Position drive shaft (pre-ass.)
5
TR00515
1
Snap ring ø 25
46487
6
TR01686
2
Support
7
TR01682
2
Clutch ring
8
TR01752
1
Position drive shaft
46487
9
TR01753
1
Lever
10
TR00187
1
Screw
11
TR00055
2
Screw M8x55
12
TR00359
2
washer ø 8
13
TR01729
1
Suction flange
14
TR01782
1
Stress drive shaft
46488
