Carraro Axle 142296
Back to search page
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
Call for pricing

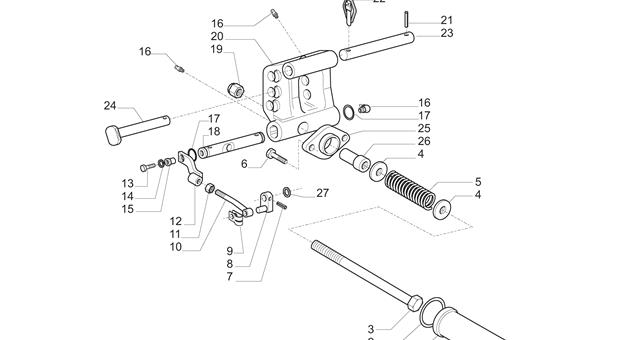

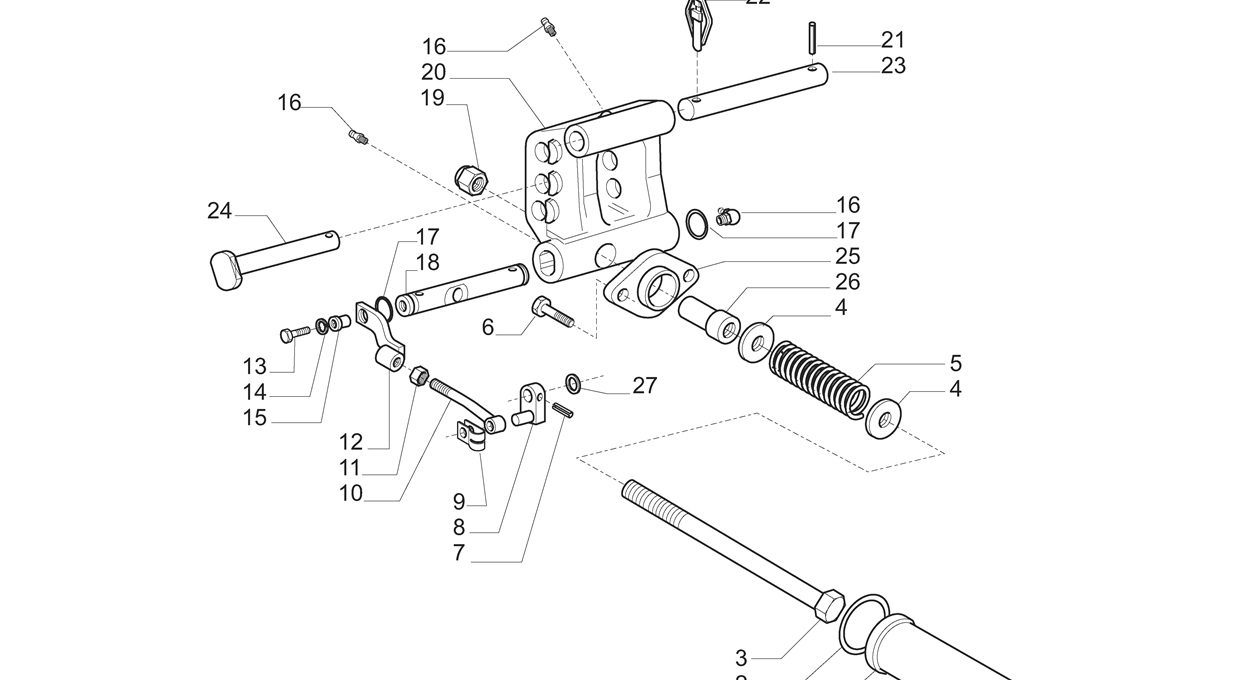

Document Revision
0,
Page
33
Pos
Part
Qty
Description
Kit
Note
1
TR01819
1
Spring cover
2
TR01689
1
Ring
3
TR09302
1
Rod
4
TR01821
2
washer 55x34.6x1.5
5
TR01822
1
Spring
6
TR00088
2
Screw M12x30
7
TR00459
1
Split pin ø 6x25
8
TR01785
1
Lever
9
TR01693
1
Lock washer
10
TR01804
1
Rod
11
TR01805
1
Nut M10
12
TR01807
1
Plate
13
TR00053
1
Screw M8x30
14
TR00359
1
washer ø 8
15
TR01806
1
Bush
16
TR01730
3
Grease nipple 45° M10x1
17
TR01731
2
Ring
48597
18
TR01826
1
Shaft
19
TR00346
1
Nut M16x1.5
20
TR01825
1
3rd pointbracket
21
TR00461
2
Split pin ø .6x35
22
TR01344
1
Q uick lock pin ø .10
48597
23
TR01783
1
3rd pointpin
24
TR01790
1
3rd pointpin
25
TR01824
1
Flange
26
TR01823
1
Bush
27
TR01808
1
washer 55x34.6x1.5
