Carraro Axle 150089
Back to search page
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
Call for pricing

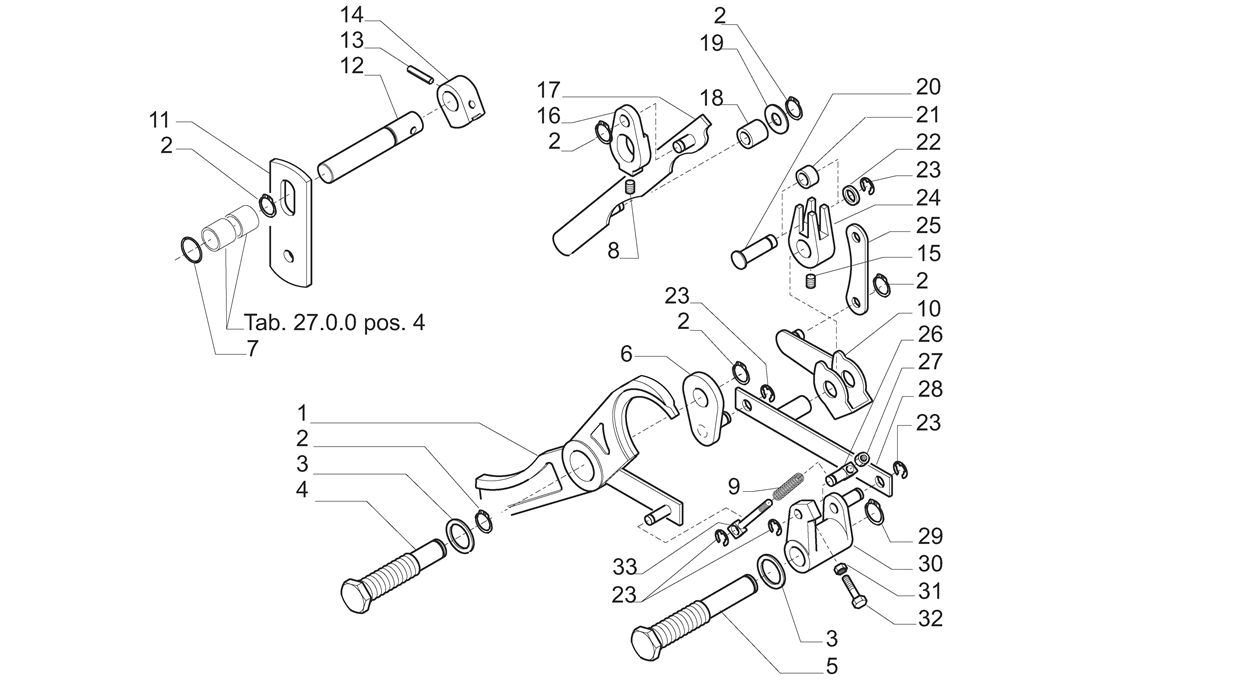

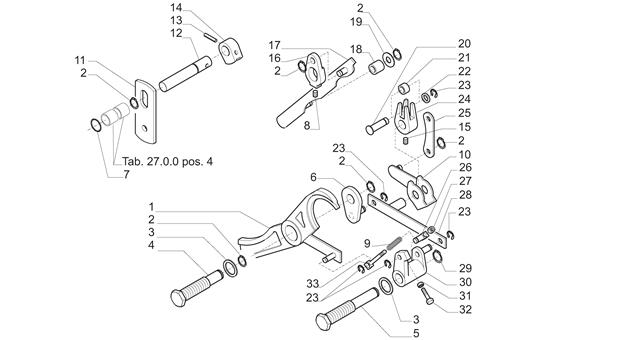

Document Revision
0,
Page
34
Pos
Part
Qty
Description
Kit
Note
2
TR00510
6
Snap ring ø 16
3
TR00396
2
washer ø .12
4
TR01796
1
Support pin
5
TR01746
1
Support pin
6
TR01749
1
Shackle
7
TR00998
1
Ring
8
TR01699
1
Grub screw M8x9
9
TR01748
1
Spring
10
TR01742
1
Cam
11
TR01698
1
Plate
12
TR01739
1
Shaft
13
TR00461
1
Split pin ø .6x35
14
TR01827
1
Cam
15
TR01708
1
Grub screw M8x12
16
TR01700
1
Cam
17
TR01701
1
Plate
18
TR01828
1
Roller
19
TR00373
1
washer 55x34.6x1.5
20
TR01705
1
Shaft
21
TR01706
1
washer
22
TR01665
1
washer ø 10
23
TR01641
5
Snap ring ø 6
24
TR01707
1
Connecting rod
25
TR01741
1
Link rod
26
TR01743
1
Shaft
27
TR00338
1
Nut M6
28
TR01798
1
Tie rod
29
TR00509
1
Snap ring
30
TR01799
1
Lever
31
TR00325
1
Plug M 8
32
TR01709
1
Screw M8x25
33
TR01797
1
Pin
